Top 9 Refrigerator Door Light Switch Ge

This is a ES18806 Refrigerator Door Light Switch for GE WR23X10143 , 5309918806, Whirlpool, Maytag, Admiral, Amana, Crosley, Jenn-Air, Kenmore, KitchenAid, Magic Chef, Supco. Manufacturers’ part numbers are solely for identification. All materials supplied by us are our replacements for manufacturers’ parts. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

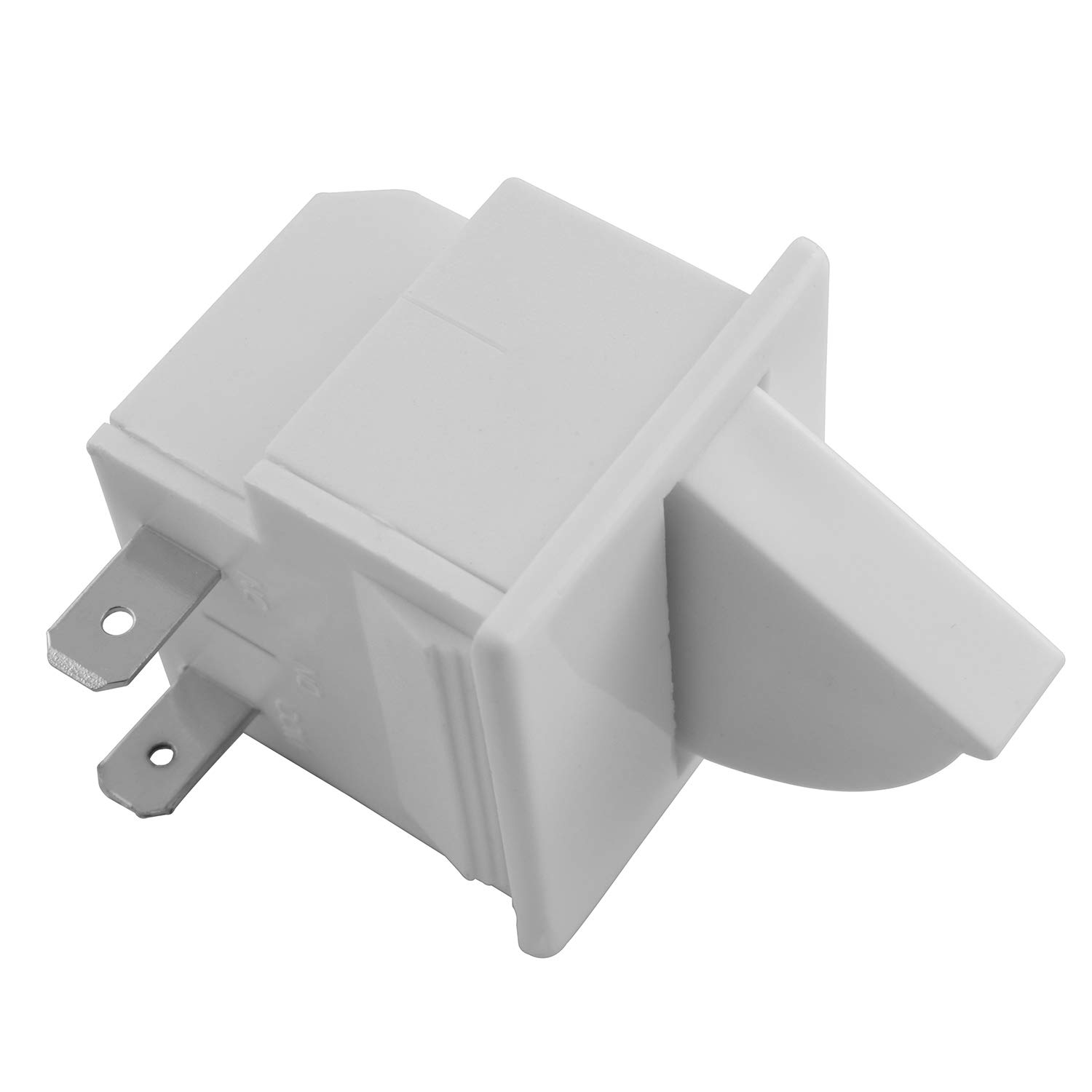

Production Name: Refrigerator Door Light Switch

Module Type: HCK-50

Rated Voltage: 125/250V AC

Rated Current:2.5A 250V/5.0A 125V

Work Temperature: -40℃-85℃/-40℉-185℉

Control Type: NC(normally close, most refrigerator control type)

Connect Pin Size: 4.8×0.5mm/0.19×0.02in

OverView Size(Not Include Pressing Tongue):29.7×25.2×25.8mm/1.2×1.0x1.0in

Kindly Remind:

Install this refrigerator carefully, pay attention to sensive pole’s direction. Normally correct direction is that door press on pole, pole will be pressed down.

You can press its pole down by your hand to test this switch OK or not as do one simple conformation during your repairing.

Fits Whirlpool brands

Description:

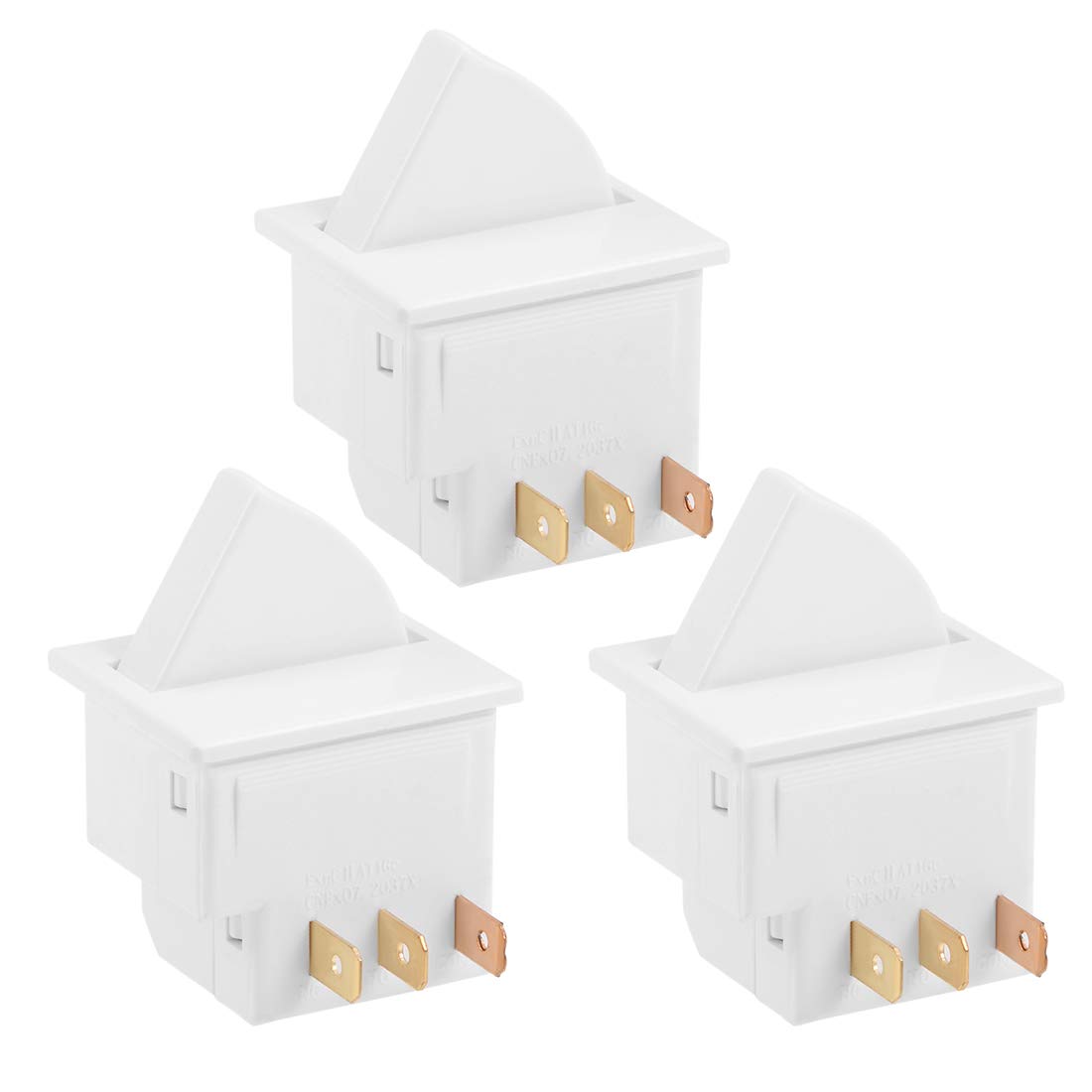

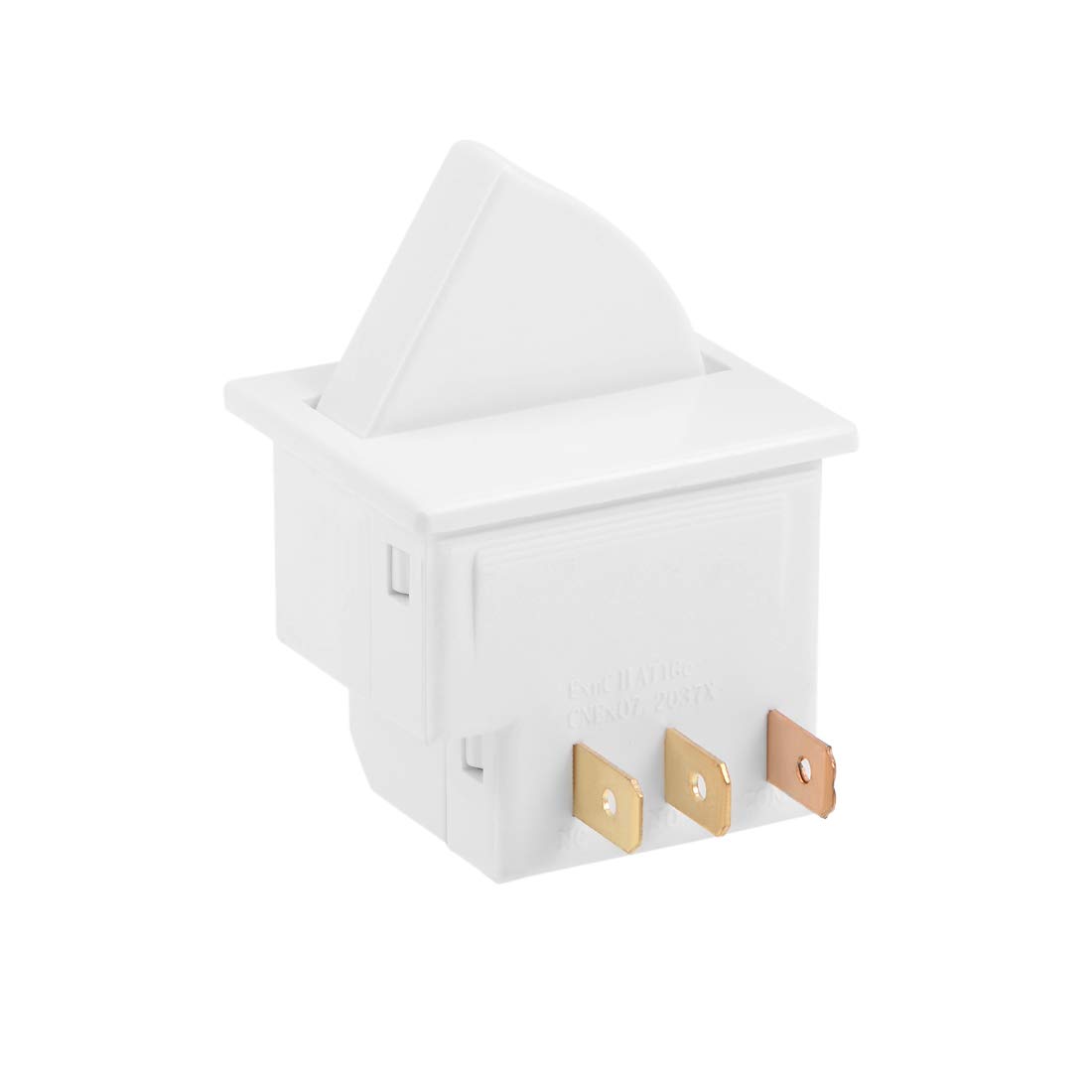

-With single pole options, these momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well.
-This switch activates the refrigerator light when the door is open. It also prevents the from working if the door is open.
-The most common reasons for replacing the door switch are when the ice maker doesn’t work, the doesn’t work, or the fridge light doesn’t work.

Specification:
Rated Power: AC 250V 0.5A
Contacts Type: 1NC+1NO
Action Type: Momentary
Terminal Size: 4.8 x 0.5mm

Description:
-With single pole options, these momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well.
-This switch activates the refrigerator light when the door is open. It also prevents the from working if the door is open.
-The most common reasons for replacing the door switch are when the ice maker doesn’t work, the doesn’t work, or the fridge light doesn’t work.

Specification:
Rated Power: AC 250V 0.5A
Contacts Type: 1NC+1NO
Action Type: Momentary
Terminal Size: 4.8 x 0.5mm

Product Description

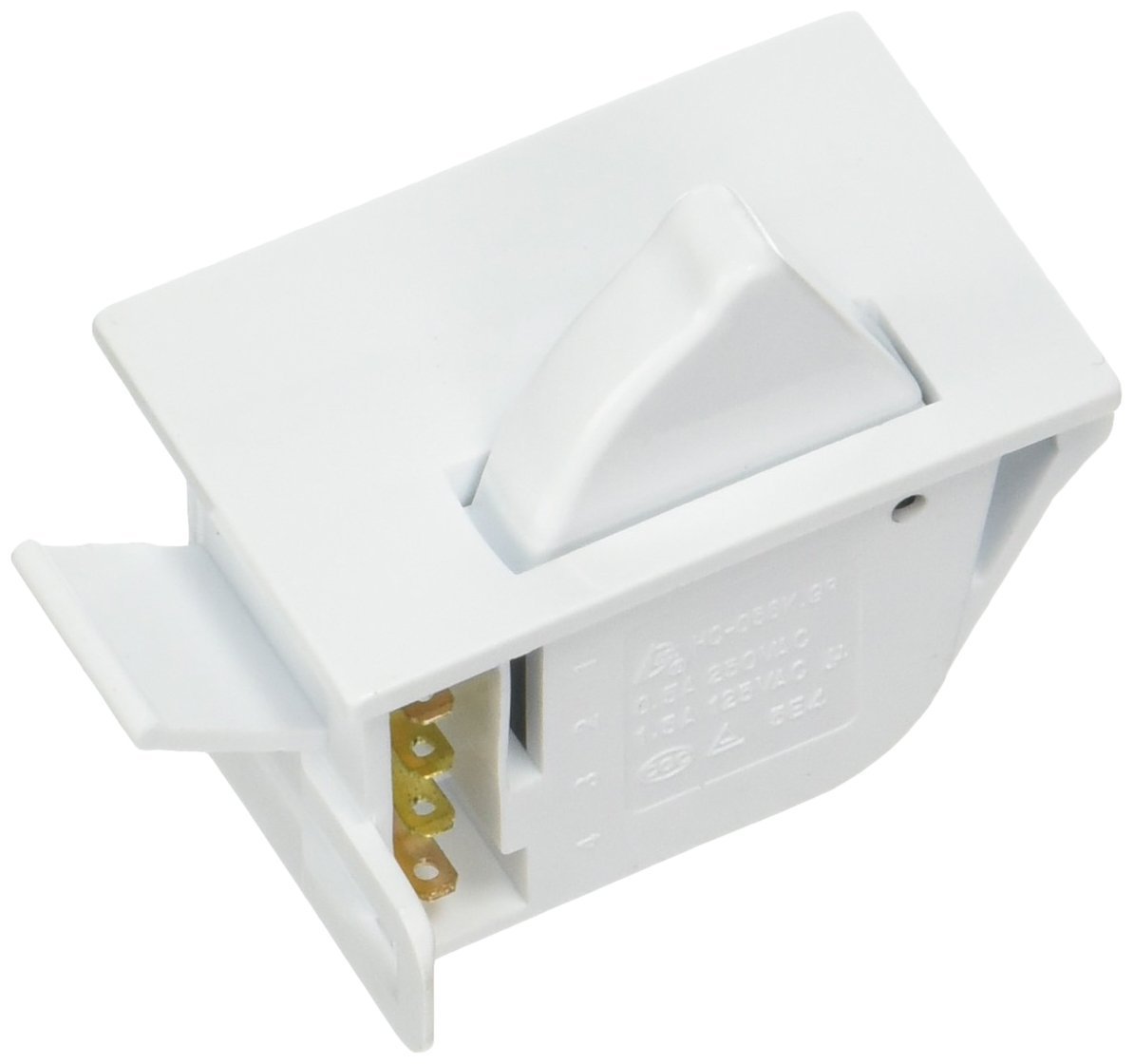

This is a genuine replacement part. The model number and name for the following item is: Light Switch 5309918806 Frigidaire switch this is used to eliminate the interior of the refrigerator/freezer after the door is opened.

From the Manufacturer

This is a genuine replacement part. The model number and name for the following item is: Light Switch 5309918806 Frigidaire switch this is used to eluminate the interior of the refigerator/freezer after the door is opened

Specification:
Rated Voltage: 125/250V AC
Rated Current:2.5A 250V/5.0A 125V
Control Type: NC(normally close)
Working environment temperature: -25-+85 centigrade
Connect Pin Size: 4.8×0.5mm/0.19×0.02inch
Life span: 50,000 times
Contact rated operating current :5A
Features:
The structure of product is compact,designed to replace an old broken switch .
High quality,durable and long service life.
Package included:
1x Refrigerator Door Light Switch

SPECIFICATIONS:

The interior light in your refrigerator is controlled by a switch that is activated when the door is opened and closed. If your refrigerator light will not turn on, or stays on when the door is closed, you could have a faulty switch. The switch is spring-loaded and is a generally closed type of switch meaning there should be no continuity when the button is pushed, and continuity through the switch when it is no longer engaged. This plastic, white switch is sold individually and is easy to replace. The repair usually takes less than 15 minutes and requires a flat-blade screwdriver and needle-nose pliers.

Works with the following models:
LG : 1867, 48231784207, 48231784214, 48231784221, etc.

Replaces part numbers :6600JB1010A, AP4442090, 6600JB1010K, 1268243, 6600JB1004A, 6600JB1010L, AH3529268, EA3529268, PS3529268, B00AYBM3J6.

Works with most top name brand: LG

Fixes the following symptom : Light not working

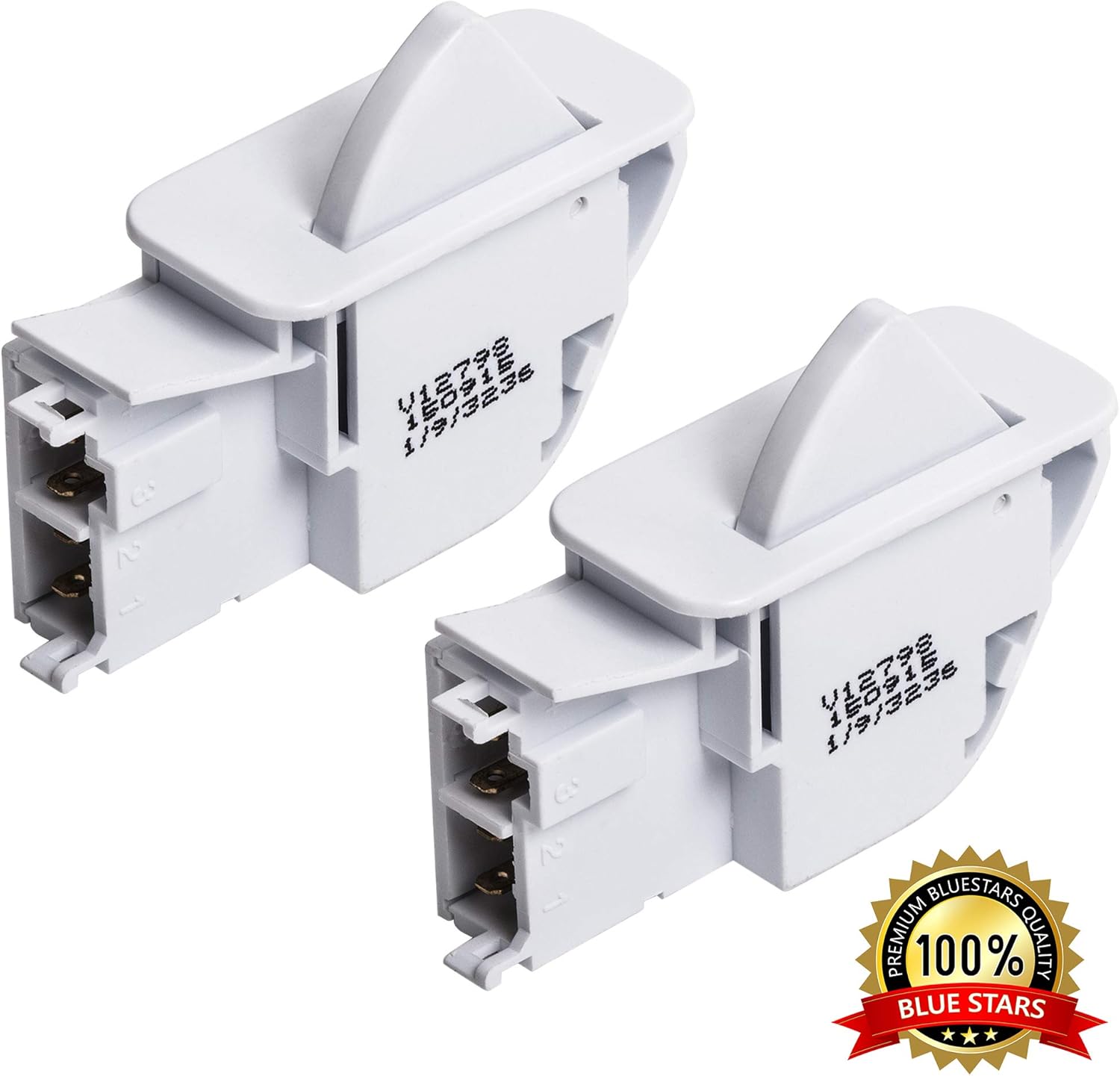

Count on our 6600JB1010A Refrigerator Door Push Button Switch for an unrivaled mix of durability, convenient functionality, and great value for money. Click ‘Add to Cart’ now!

If you are unsure our replacement part will fit your appliance model, you can ask us in Customer questions & answers section or contact us by visiting the Blue Stars LLC storefront — click the “Blue Stars LLC” on a product page to get to the storefront — then click the “Ask a question” link under Further Information. Select your reason, and then tell us about the question.

The LG brand names and logos are the registered trademarks of their respective owners. Any use of the LG brand name or model designation for this product is made solely for purposes of demonstrating compatibility
