The Best Mini Pc Appliance

The Vault is a fanless, solid state, small form factor network appliance built for use as a firewall router and is compatible with a variety of open source firewall projects. The FW10001 barebone version comes without RAM or mSATA storage so the buyer can select the option that meets the needs of the application.

For an updated unit that supports AES-NI, please see this product: https://www.amazon.com/dp/B072ZTCNLK

Tested compatibility:
The Vault has been tested with many of the most popular open source software firewall solutions. Compatibility includes pfSense® CE, VyOS, OPNsense, Security Onion, Untangle, CentOS 7, *BSD, Linux, Windows and others.

Hardware Specifications:
Intel® Celeron Quad Core CPU J1900 64 bit, 1.99GHz, 2 MB L2 Cache
4x Intel® 82583V NIC ports (Note that Intel NIC ports are known to cause fewer problems than other vendors due to strong device driver support)
Hardware support for up to 8GB PC-1600 DDR3L RAM in a single SO-DIMM
Hardware support for one mSATA form factor SSD
1x USB 3.0 port
1x USB 2.0 port
1x RJ-45 COM Port
1x VGA port
Power Button LED, Power LED and HDD activity LED VESA mount for mounting to a wall or the back of a monitor
Power supply included with US cord
Runs on approximately 10 Watts under moderate load, 18W max
Optional Wireless card kit is available from Protectli. Card is USB Channel and fits in a designated PCIe form factor slot with USB communications
Pre-drilled holes are in the chassis for WiFi antennas
WiFi kit at https://www.amazon.com/dp/B01N9YVN6T
Dimensions are 5.3 x 4.9 x 1.4 in (134 x 124 x 36 mm)
Weight is 1.25 lbs, (0.57 Kg)
Operating Temperature 14 to 122 degrees Fahrenheit (-10 to 50 degrees Celsius)
All metal enclosure for durability and heat dissipation

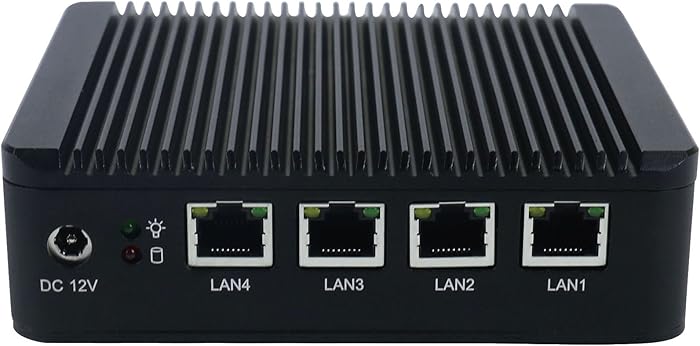

Fanless 4 Lan Mini Pc Q330G4 Specification:
Dimension:187*115*52mm(L*H*W) ( Reference )
Weight:1.1Kg
Power Consumption:TDP 15W
Onboard CPU: 4th Generation Intel Core i3-4005U Processor 3M Cache, 1.70 GHz
Memory:SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot ,Max. Support up to 8GB Memory
Hard Disk:support SSD ( MSATA / SATA) – support HDD (2.5 inch SATA HDD )
Onboard VGA:Intel HD Graphics 4400
Onboard LAN:4 x Intel I211-AT- 10/100/1000 Controller
Audio Solution:Realtek ALC662 6-Channel HD Audio

Front-Panel Connectors
power on/off button
2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x HD Video Connector
1 x Serial port

Internal Connectors
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper

Back-Panel Connectors
1 xDV 12V DC input
HDD LED, Power LEDs
4 x Intel RJ-45 Ports
1 x Speak Out Connector
1 x Mic In Connector

Power Supply:DC 12V
Packing list: 1*QOTOM Q330G4,1*Power adapter,1*Screw,1*Packaing box.
This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.
Built with performance, versatility, and low total cost of ownership in mind, pfSense systems meet the growing needs of organizations of all sizes.

Warranty:
1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.

The Vault is a fanless, solid state, small form factor network appliance built for use as a firewall router and is compatible with a variety of open source firewall projects. The FW108120 comes with 8GB DDR3L RAM and 128GB mSATA SSD storage.

For an updated unit that supports AES-NI, please see this product: https://www.amazon.com/dp/B0742Q3NT6

Tested compatibility:
The Vault has been tested with many of the most popular open source software firewall solutions. Compatibility includes pfSense® CE, VyOS, OPNsense, Security Onion, Untangle, CentOS 7, *BSD, Linux, Windows and others.

Hardware Specifications:
Intel® Celeron Quad Core CPU J1900 64 bit, 1.99GHz, 2 MB L2 Cache
4x Intel® 82583V NIC ports (Note that Intel NIC ports are known to cause fewer problems than other vendors due to strong device driver support)
Includes 8GB PC-1600 DDR3L RAM in a single SO-DIMM
Includes 128GB mSATA SSD (unit does NOT come with an OS installed)
1x USB 3.0 port
1x USB 2.0 port
1x RJ-45 COM Port
1x VGA port
Power Button LED, Power LED and HDD activity LED VESA mount for mounting to a wall or the back of a monitor
Power supply included with US cord
Runs on approximately 10 Watts under moderate load, 18W max
Optional Wireless card kit is available from Protectli. Card is USB Channel and fits in a designated PCIe form factor slot with USB communications
Pre-drilled holes are in the chassis for WiFi antennas
WiFi kit at https://www.amazon.com/dp/B01N9YVN6T
Dimensions are 5.3 x 4.9 x 1.4 in (134 x 124 x 36 mm)
Weight is 1.25 lbs, (0.57 Kg)
Operating Temperature 14 to 122 degrees Fahrenheit (-10 to 50 degrees Celsius)
All metal enclosure for durability and heat dissipation

***Note, an updated 2 port model that supports AES-NI is now available (http://www.amazon.com/dp/B07FKVQ234)***

The Vault is a fanless, solid state, small form factor network appliance built for use as a firewall router and is compatible with a variety of open source firewall projects. The FW20216 version comes with 2GB DDR3L RAM and 16GB mSATA SSD storage.

Tested compatibility:
The Vault has been tested with many of the most popular open source software firewall solutions. Compatibility includes pfSense CE, VyOS, OPNsense, Security Onion, Untangle, CentOS 7, *BSD, Linux, Windows and others.

Hardware Specifications:
Intel Celeron Dual Core CPU J1800 64 bit, 2.49GHz, 2 MB L2 Cache
2x Intel 82583V NIC ports (Note that Intel NIC ports are known to cause fewer problems than other vendors due to strong device driver support)
Includes 2GB PC-1600 DDR3L RAM in a single SO-DIMM
Includes 16GB mSATA SSD (unit does NOT come with an OS installed)
1x USB 2.0 port
1x x USB 3.0 port
1x RJ-45 COM port
1x VGA port
Power Button LED, Power LED and HDD activity LED VESA mount for mounting to a wall or the back of a monitor
Power supply included with US cord
Runs on approximately 10 Watts under moderate load, 15W max
Optional Wireless card kit is available from Protectli. Card is USB Channel and fits in a designated PCIe form factor slot with USB communications
Pre-drilled holes are in the chassis for WiFi antennas
WiFi kit at https://www.amazon.com/dp/B01N9YVN6T
Dimensions are 5.2 x 4.9 x 1.5 inches (134 x 126 x 36 mm)
Weight is 1.25 lbs, (0.57 Kg)
Operating Temperature 14 to 122 degrees Fahrenheit (-10 to 50 degrees Celsius)
All metal enclosure for durability and heat dissipation

Storage Tips to better use this mini pc:

1. Add a Micro SD card for saving files and documents.
2. Regularly delete the software distribution folder in windows directory to keep updates size use down. This folder is used for updates for windows.
3. Uninstall any program or app that isn’t needed or used. Once done, there was enough space to update Windows.

Processor

CPU: Intel Atom x5-Z8350
Processor Base Frequency:1.44 GHz
Burst Frequency: 1.92 GHz
Cache: 2 MB
# of Cores: 4

Storage

Memory Size: 2GB
Memory Types: DDR3L
Hard Disk: 32GB

Processor Graphics

GPU: Intel HD Graphics
Graphics Base Frequency: 200 MHz
Graphics Burst Frequency: 500 MHz
I/O Specifications

USB: 2x USB 3.0
Video Interface: 1x HDMI
Audio Port: Headphone/Mic Combo Interface
1X Ethernet Port
1x Micro SD Card Slot
1x DC Power Port

Wireless Technology

Wi-Fi: 2.4G/5G Built-in Wi-Fi AC
Bluetooth: BT 4.2

Package List

1x Mini PC
1x Power Cord
1x HDMI cable
1x English Instruction
