The Best Ice Maker Supply Box Cpvc

The SharkBite Ice Maker Outlet Box is integrated with SharkBite push-to-connect ends to allow for quick and easy installation of a water main supply and shutoff for refrigerator ice maker and water dispenser appliances using Copper, PEX, CPVC, or PE-RT water lines. This is lead-free compliant and is offered with or without integral water hammer arrestors for water shockwave prevention. The box can be mounted to the left or right of the stud bay and needs no additional support framing. The snap-on faceplate accommodates up to 3/4″ drywall. 1/2″ SB X 1/4″ Compression Can be used with copper, cpvc or pex lines Decease the time & effort needed to connect water distribution pipe, no glue, soldering or crimping needed Simply cut your pipe, deburr, mark the pipe approximately 1″ For proper insertion depth, install pipe to proper depth Use behind your refrigerator, ice maker, or water dispenser to provide a clean installation & allow for easy shut off Includes the ice maker outlet box Faceplate cover, 2 support brackets.

This Eastman 60234 Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch CPVC inlet connection and a 1/4-inch OD compression outlet with a rough opening of 5-3/4-inch width x 4-7/8-inch height x 3-1/2-inch diameter.

The outlet box comes complete with a pre-installed 1/4-turn ball valve, support bracket, and a faceplate cover of dimensions 8-1/4-inch width x 7-5/16-inch height. It is built with one-piece box and flange design. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

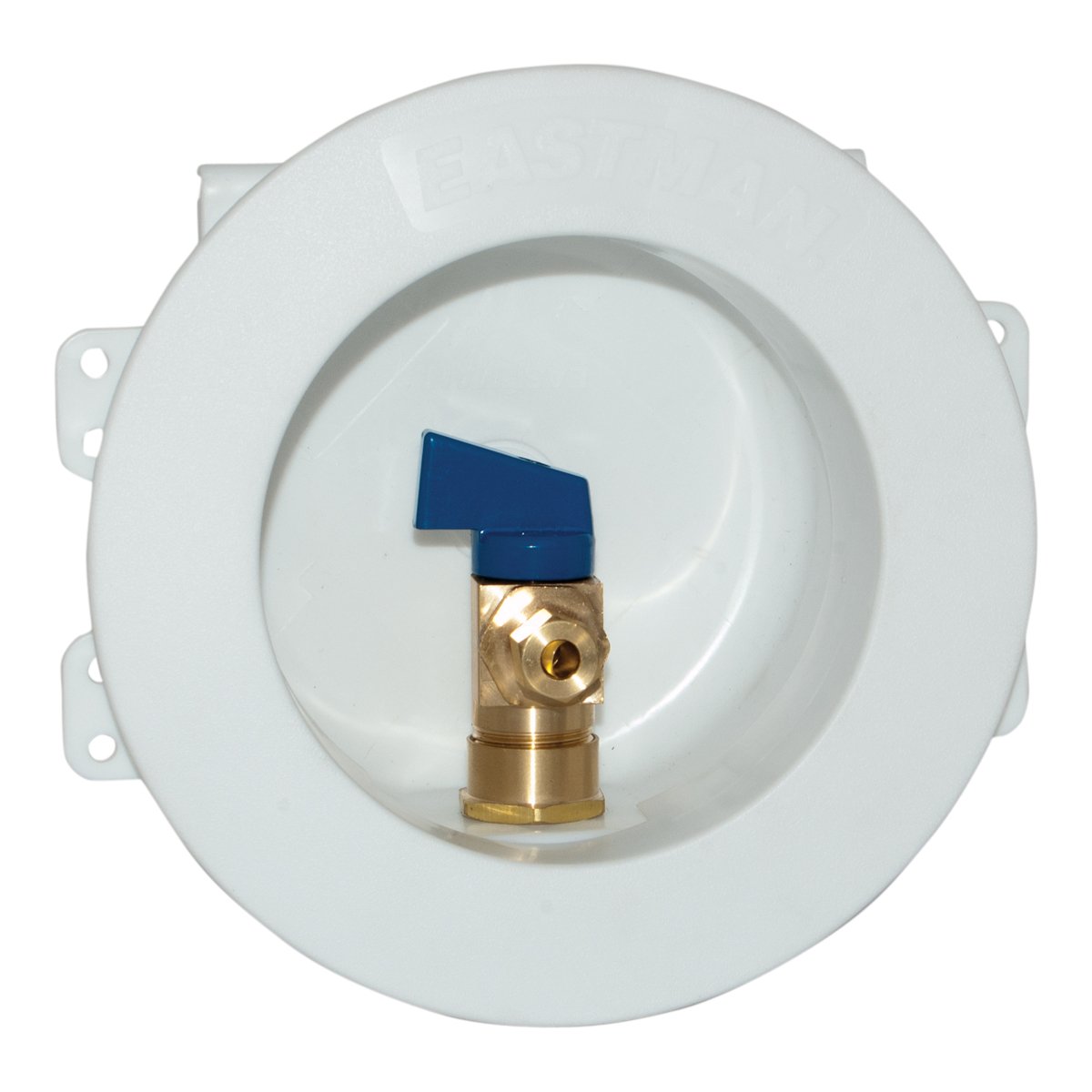

This Eastman 60239 CPVC Round Mini Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch CPVC inlet connection

This outlet box comes complete with a 1/4-Turn Ball valve installed, pre-loaded reversible nails which provide a strong rigid mount, and a faceplate cover. It does not need a support bracket, and the outlet box can be installed to the left or right stud bay. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

Product Description

12K ice maker box with nails preloaded. Right or left hand installation. Provides quick, safe water supply and shutoff for refrigerator ice maker and water dispenser. Valves comply with requirements of NSF 61, Section 9. No support needed. Box dimensions: 3.20″ W. x 4.15″ H. x 2.35″ D. Faceplate dimensions: 5.00″ W. x 5.89″ H. x .50″ D. U.S. patent No. D428.117. Canadian patent No. 90133. Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces.

From the Manufacturer

Oatey products can be found in residential and commercial applications and have achieved excellent brand name recognition with consumers. All products are backed with the highest quality technical and customer support programs in the industry

This Eastman 60240 CPVC Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch CPVC inlet connection and a 1/4-inch OD compression outlet with a rough opening of 5-3/4-inch width x 4-7/8-inch height x 3-1/2-inch diameter.

The outlet box comes complete with a pre-installed 1/4-turn ball valve, installed hammer arrester, support bracket, and a faceplate cover of dimensions 8-1/4-inch width x 7-5/16-inch height. It is built with one-piece box and flange design. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

This Eastman 60238 Crimp PEX Round Mini Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch Crimp PEX inlet connection

This outlet box comes complete with a 1/4-Turn Ball valve installed, pre-loaded reversible nails which provide a strong rigid mount, and a faceplate cover. It does not need a support bracket, and the outlet box can be installed to the left or right stud bay. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

This Eastman 60232 Sweat Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch Sweat inlet connection and a 1/4-inch OD compression outlet with a rough opening of 5-3/4-inch width x 4-7/8-inch height x 3-1/2-inch diameter.

The outlet box comes complete with a pre-installed 1/4-turn ball valve, support bracket, and a faceplate cover of dimensions 8-1/4-inch width x 7-5/16-inch height. It is built with one-piece box and flange design. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

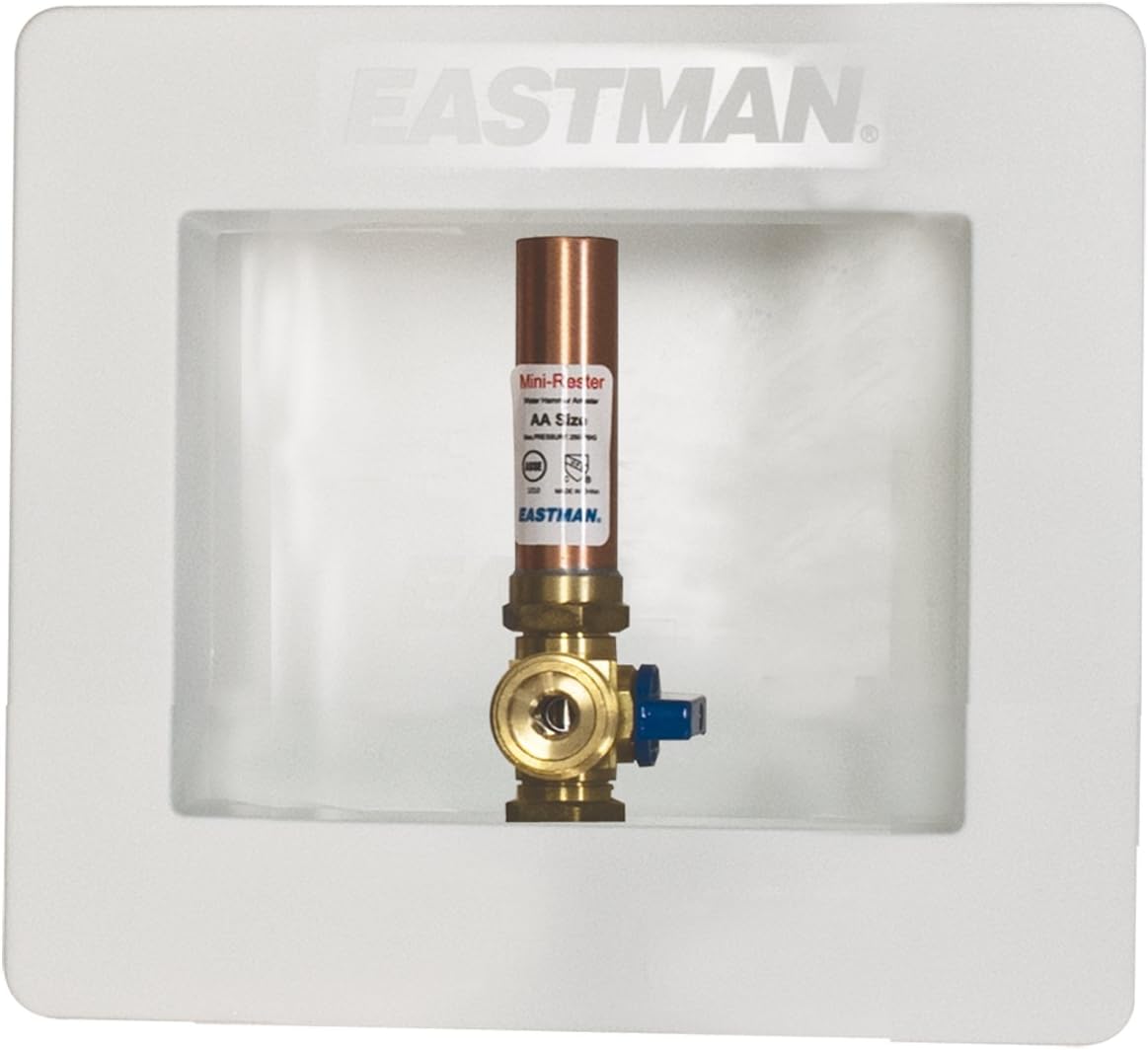

This Eastman 60241 Sweat Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch Sweat inlet connection and a 1/4-inch OD compression outlet with a rough opening of 5-3/4-inch width x 4-7/8-inch height x 3-1/2-inch diameter.

The outlet box comes complete with a pre-installed 1/4-turn ball valve, installed hammer arrester, support bracket, and a faceplate cover of dimensions 8-1/4-inch width x 7-5/16-inch height. It is built with one-piece box and flange design. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).

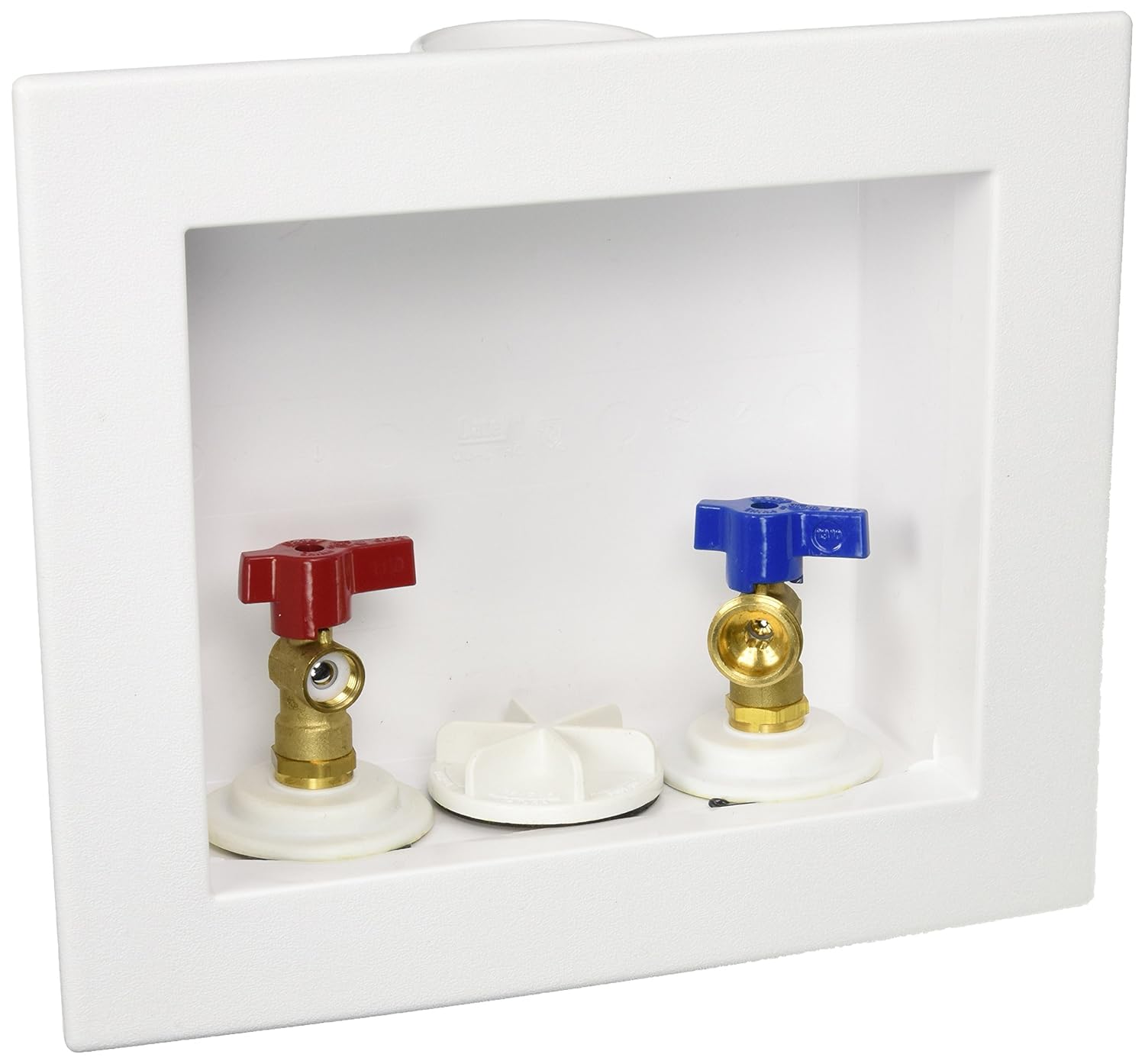

This Eastman 60249 CPVC Center Drain Washing Machine Outlet Box Assembly Kit is designed for recessed residential applications. It has a 1/2-inch CPVC inlet connection, a 3/4-inch male hose thread (MHT) outlet, and a center drain connection.

The outlet box comes complete with a pre-installed 1/4-Turn brass hot and cold valve, support bracket, and a Snap-On faceplate cover which accommodates up to 1-inch drywall. It is built with one-piece construction and a raised drip guard that prevents potential leaks.
