Top 8 Alpha Coal Gillette Wyoming

Mit der Eisbaer revolutioniert Alphacool den AIO Kühlermarkt grundsätzlich. Sind klassische AIO CPU-Kühler Wegwerfprodukte die weder erweiterbar noch wieder befüllbar sind, ist die Alphacool Eisbaer modular aufgebaut und kann jederzeit erweitert, umgebaut oder nachbefüllt werden.

The new Alphacool NexXxos radiators, a name that stands for experience and quality has come to bring a fresh breeze to the radiator market. Following this tradition, the new NexXxos radiators are the first to truly deserve the “Full copper” attribute. All main parts, not only the fins and channels, but the chambers are also made from copper. The radiators are designed to be used with 120mm, 140mm, and 180mm fans and are available in different thicknesses. The choice of 30mm (ST30 series), 45mm (XT45 series), 60mm (UT60 series), and 85mm (Monsta series) offers the perfect radiator for every purpose. Fin spacing is always an important factor in radiator design. The new series from Alphacool has a fin design which allows it to perform extremely well even with slow-spinning and medium-speed fans. This is not only pleasant thanks to the fact that it avoids unnecessary noise; it also means that the choice of fans that can be used with these radiators is not restricted. Even mounting and installation of fans and radiator grills is easy and versatile with these radiators. Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge which stops the screw before it damages the fins. These radiators are the result of experience and powerful performance meeting future-oriented design and well-thought through solutions.

Model: 14175

Revolutionise your system with the All-in-One that changes everything. The Alphacool Eisbaer Extreme is stronger, more beautiful and quieter than anything you’ve seen before in the AiO water cooling market.

Eisblock XPX- Freedom and maximum comfort
For the Eisbaer Extreme AiO, Alphacool relies on its award winning Eisblock XPX CPU cooler. It is known for its cooling performance at the highest level and impresses with its elegant design. Mounting is possible on all common AMD and Intel sockets. With the Eisbaer Extreme you enjoy absolute performance and quality.

Pure Performance – inc. Silent Wings powered by be quiet!
The Eisbaer Extreme is a brand-new design for Alphacool. A high-quality housing encloses the radiator and fans as well as a patented pump/reservoir combination. In co-operation with the well-known manufacturer be quiet! the award-winning Silent Wings 3 fans are alread installed on the Alphacool NexXxoS Radiator. With the Eisbaer Extreme you have the coolest cooling for your hardware.

Progress into a New Age
Alphacool gives you the flexibility you need. Use your Eisbaer Extreme perfectly thanks to the new Eisbaer Ready quick-release couplings. These are compatible with all Eiswolf / Eisbaer quick release connections. The redesigned, powerful VPP755 Eispump gives you the flow you need.

Individualize
With the Eisbaer Extreme you decide how your system is structured. You can expand this All-in-One at any time with additional components, modify it or fill it according to your desires. Whether you install the Eisbaer Extreme horizontally or vertically, it’s up to you how you showcase your water cooling system.

Technical Details:

The new Alphacool NexXxos radiators, a name that stands for experience and quality has come to bring a fresh breeze to the radiator market. Following this tradition, the new NexXxos radiators are the first to truly deserve the “Full copper” attribute. All main parts, not only the fins and channels, but the chambers are also made from copper. The radiators are designed to be used with 120mm, 140mm, and 180mm fans and are available in different thicknesses. The choice of 30mm (ST30 series), 45mm (XT45 series), 60mm (UT60 series), and 85mm (Monsta series) offers the perfect radiator for every purpose. Fin spacing is always an important factor in radiator design. The new series from Alphacool has a fin design which allows it to perform extremely well even with slow-spinning and medium-speed fans. This is not only pleasant thanks to the fact that it avoids unnecessary noise; it also means that the choice of fans that can be used with these radiators is not restricted. Even mounting and installation of fans and radiator grills is easy and versatile with these radiators. Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge which stops the screw before it damages the fins. These radiators are the result of experience and powerful performance meeting future-oriented design and well-thought through solutions.

Model: 14158

The Alphacool Helix Eisbecher captivates with its unique Helix Optic, including elegant aluminium caps for its upper and bottom sides. The 60mm diameter version also offers a UV cathode tube to illuminate UV-reactive water from within. Highlights Helix Optic Four colour combinations Two diameter sizes – 50mm and 60mm 60mm version comes with UV cathode tube The Alphacool Eisbecher Helix Light is the optical highlight of the Eisbecher family. The helix inside the reservoir gives off a unique effect reminiscent of a strand of DNA, making it a real eye-catcher. The base and top are made entirely of acetal, but are covered with aluminium caps for an elegant look. The aluminium caps do not come in contact with the water, of course. The installation options are considerable, with two G1/4 threads in both the bottom and top. This gives you lots of options for positioning your reservoir. The installation set is a clip bracket, made up of two clips which are fastened to the case with one screw each. The Eisbecher Helix Light just needs to be clipped on, giving you lots of flexibility in how you mount it. The Eisbecher Helix is available in multiple colour combinations. The cap, bottom, and the helix itself can all be different colours. Technical Specifications Dimensions (HxD): 250 x 55mm Connection threads: 4x G1/4″ Helix colour / aluminium caps: white / black LED holes: 4x 5mm Capacity: 200ml Scope of Delivery 1x Alphacool Eisbecher Helix Light 250mm Reservoir – white/black 2x Transparent bracket clips + assembly materials 2x Locking screws Datasheet Installation Manual Download 3D-file (.stp)

This Eisbecher is the older brother of the DDC version. The pump is being mounted with a mounting ring that holds the pump with eight screws. You can use four LEDs that are hidden within the socke of the pump for the lighting of the plexi version. The lighting of the top is fascilitated through the lighting module. Standpipe and Bubble Down both do an excellent job in this model as well. The fastening happens through either the mountings or through the bases that are included in the delivery. There are even threads in the socket of the pump should there be a free space at the 3,5″ drive bay (pump decoupling with M4 inner thread and outer thread needed – Art. 52007).

Included in delivery:
4x M4x25mm screw
8x M4x8mm screw
4x M4 nut
1x mounting ring
1x O-Ring ID ca. 54mm
2x base
1x allen key 2,5mm

Measurements 150mm Version:
Measurements incl. mounting without base (LxWxD): 157,5 x 136 x 79,5mm
Measurements without mounting incl. base (LxWxD): 203,5 x 87,5 x 80mm

Diameter of the Plexitube: 60mm

Measurements 250mm Version:
Measurements incl. mounting without base (LxWxD): 257,5 x 136 x 79,5mm
Measurements without mounting incl. base (LxWxD): 303,5 x 87,5 x 80mm

Diameter of the Plexitube: 60mm


Written Reviews

</p

3D Model (.stp)

For years now this top is already a measure. Again and again, small improvements have been made. The second major update differs both, visually and technically in a few details. The principle: On the bottom there is space for the Laing D5 or VPP655 pump and in the front or on top the inlet and outlet. For even more flexibility, the Eisdecke gets three inlets and two outlets. Another feature is the new holder to give the entire unit a stable footing and complete the overall visual image. Optional installation in 3.5 “drive bay is possible. The top can be converted by using the suplementary element, whitch is given as an accessory, to an complete reservoir which has also been revised.

Model: 13194

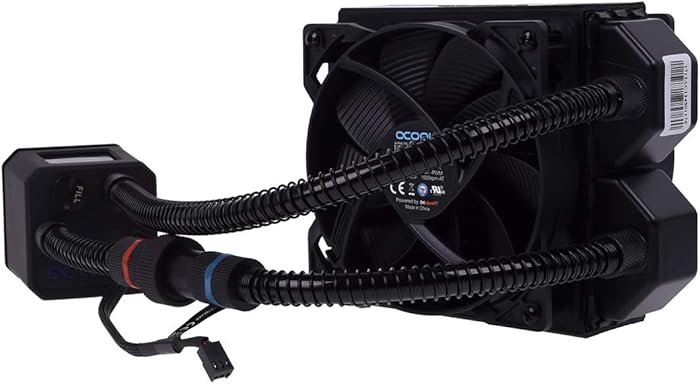

Can the Eisbaer from Alphacool become even better? Absolutely! Would the Eisbaer look even more impressive with aRGB? Definitely yes!! The Eisbaer Aurora AIO still cools the CPU with the well-known and high-quality copper cooler of the Eisbaer, although the surface area has been enlarged, compared to its predecessor. Also, the pump works much more efficiently with 10% more power, with reduced noise level.

The hoses and fittings have also been completely revised and are now much smoother and more inconspicuous. Since durable TPV hose and fittings from the Enterprise Solution series are now used, safety and durability is also one of the features. For more individuality, fittings and hose can be easily replaced thanks to the G1/4 fittings. The Eisbaer Aurora, as before, can be expanded via the quick release fasteners.

The most striking feature of the Eisbaer Aurora is the addressable RGB LED lighting. Here the focus is on the Eisbaer pump and the stylish Aurora LUX Pro fans. By using a compatible mainboard or controller, colour and effects can be adjusted individually.

Technical Data:

Radiator:
Dimension: 278 x 124 x 30 mm (L x W x H)
Material: Full Copper
Threads: 2x G1/4″

Pump Housing:
Dimension: 66 x 66 x 69 mm (L x W x H)
Material Reservoir: Transparent Nylon
Threads: 2x G1/4″
Connection Digital RGB: 3-Pin JST + 3-Pin 5V

Pump:
Speed: 2800 rpm
Voltage: 7 – 13.5V DC
Power Consumption: 4W
Max. Flow Rate: 75 L/h
Max. Head: 0.95 m

Fans:
Size: 120 x 120 x 25 mm
Speed: 800 – 2000 rpm
Static Pressure: 2.0 mm H2O
Air Flow Rate: 104,49 m³/h
Bearings: Hydraulic
Fan Connector: 4-Pin PWM
Connection Digital RGB: 3-Pin JST + 3-Pin 5V

Compatiblity:
Intel 775 / 1056 / 1155 / 1150 / 1151 / 2011 / 2011-3 / 2066
AMD AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4

Model: 11728
